WEB SMART
• 4.3" colorful touch screen with live animated track control display
• Fast response, thanks to high-speed processor
• Auto/Manual mode
• Proximity switches provides to sense end travel limit of both the sides and will display RED indication in the screen
• Because of graphical touch screen, it is possible to display customer logo on the screen every time when switch on the system.
• Input power supply :24vdc/4A, output: 0-24vdc/ 2A
• Dimension in mm :140mm(W) x 97mm (H)x 32mm (D) Thinnest
• Panel cutout in mm: 127mm(W) x 87mm(H)

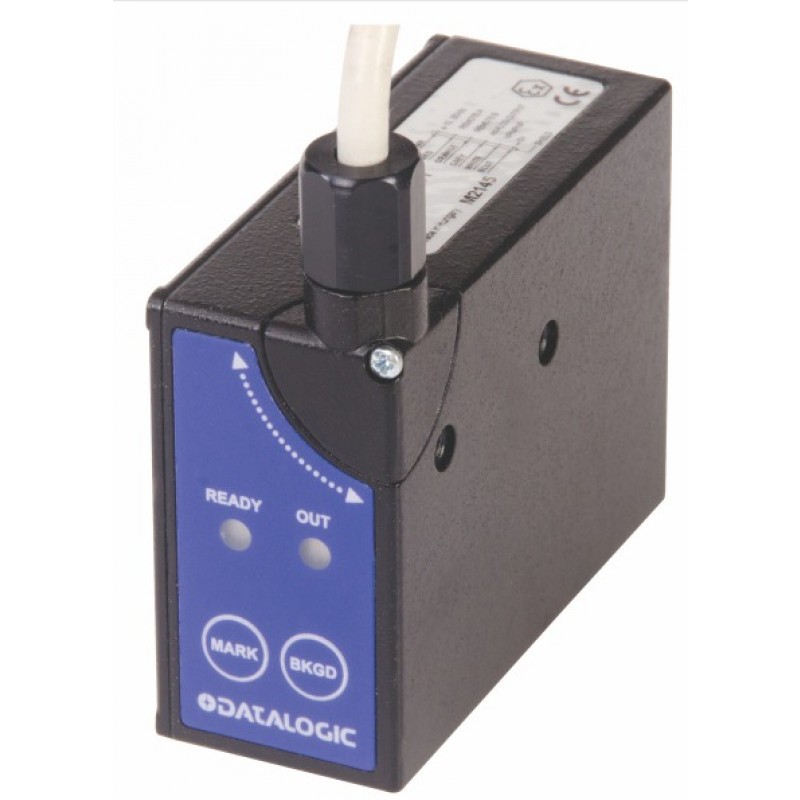

COLOUR TRACKING SENSOR
• Model :TLU0l1
• Sensor Type : Photo electric
• Minimum spot dimension :l.SxSmm/2x7mm
Ripple: : 2VPP Max
• Response Time : SOI-lS MAX
• Switching Frequency :10KHz
• Input :10-30VDC
• Output : O-S.5VDC
• Material which can Be : Detection oftransparent, Detected opaque, coloured material.
• Normally used to detect colour line.

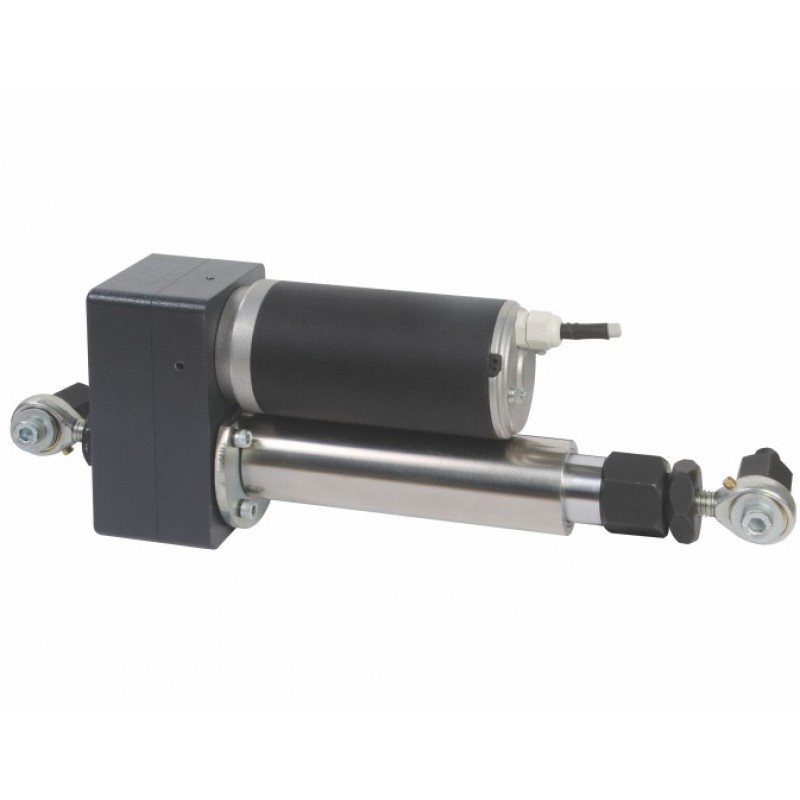

ACTUATOR
• Actuator consists of PMDC motor, linear ball screw and guide with gearing arrangement.
• Normally lS0mm (+/- 7Smm)
• stroke length as standard supply and can be customized as require
• Easyinstallation and maintenance free system
• Slider assembly and bar holder as standa rd supply.
