Auto Tension Controller (ATC-4300)
- 4.3" Colorful Touch Screen: with live, animated tension control display for intuitive monitoring.
- Fast Response: enabled by a high-speed processor for seamless operation.
- Consistent Tension: from zero speed to maximum, ensuring precise control at all speeds.

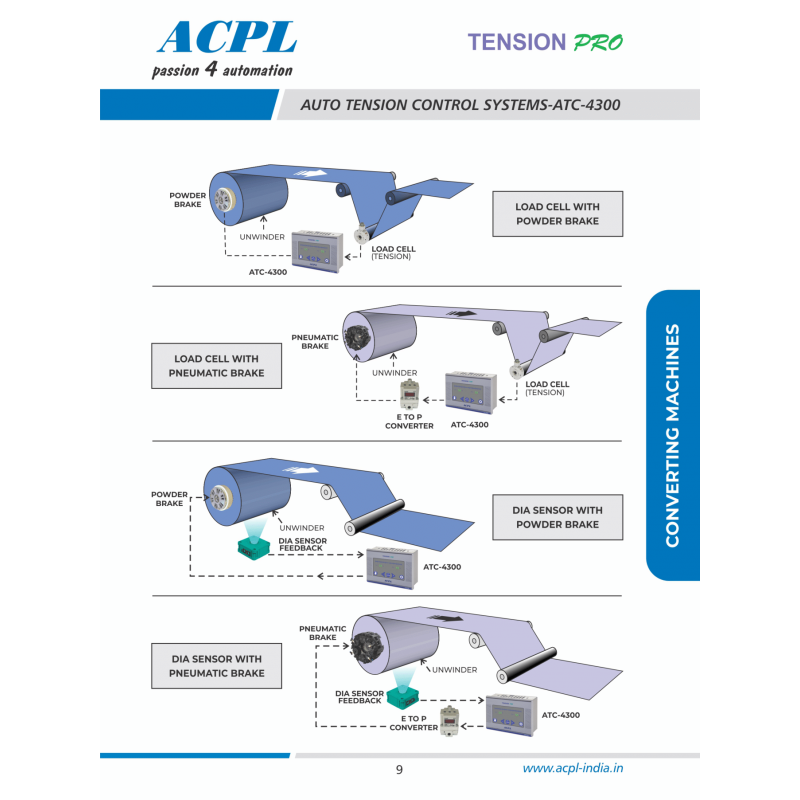

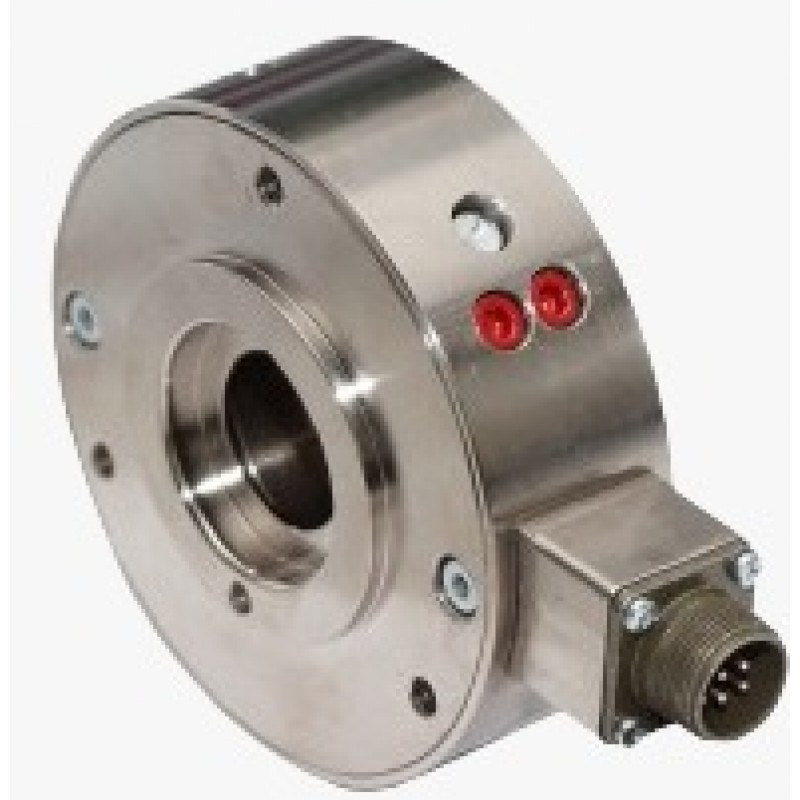

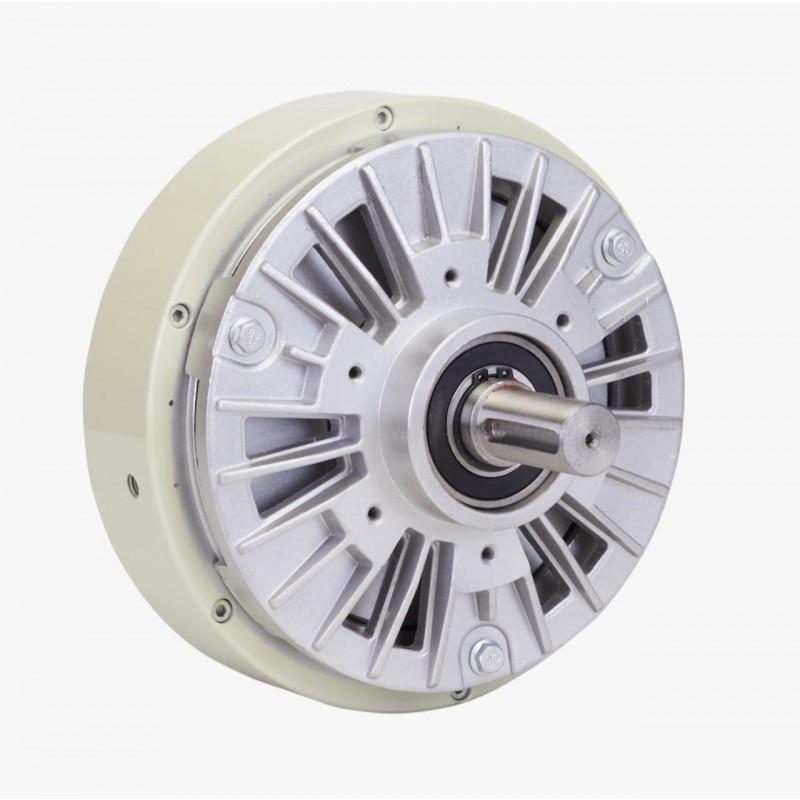

- Flexible Input Options: supporting load cell or ultrasonic diameter sensor inputs to control powder or pneumatic brakes.
- Auto/Manual Mode: for versatile operation, catering to different user preferences.
- Customizable Display: allowing the customer’s logo to appear briefly every time the system is powered on, thanks to the graphical touch screen interface.
- Rugged Durability: Our controller is crafted with a durable aluminum body designed to withstand both high temperatures and physical impact, ensuring long-lasting performance and reliability.
- Input power supply: 24V DC/10A
- Output: 0-24V DC/10A
- Dimension in mm: 150mm(W) x 110mm (H) x 40mm (D)
- Panel Cutout in mm: 142mm(W) x 102mm(H)
