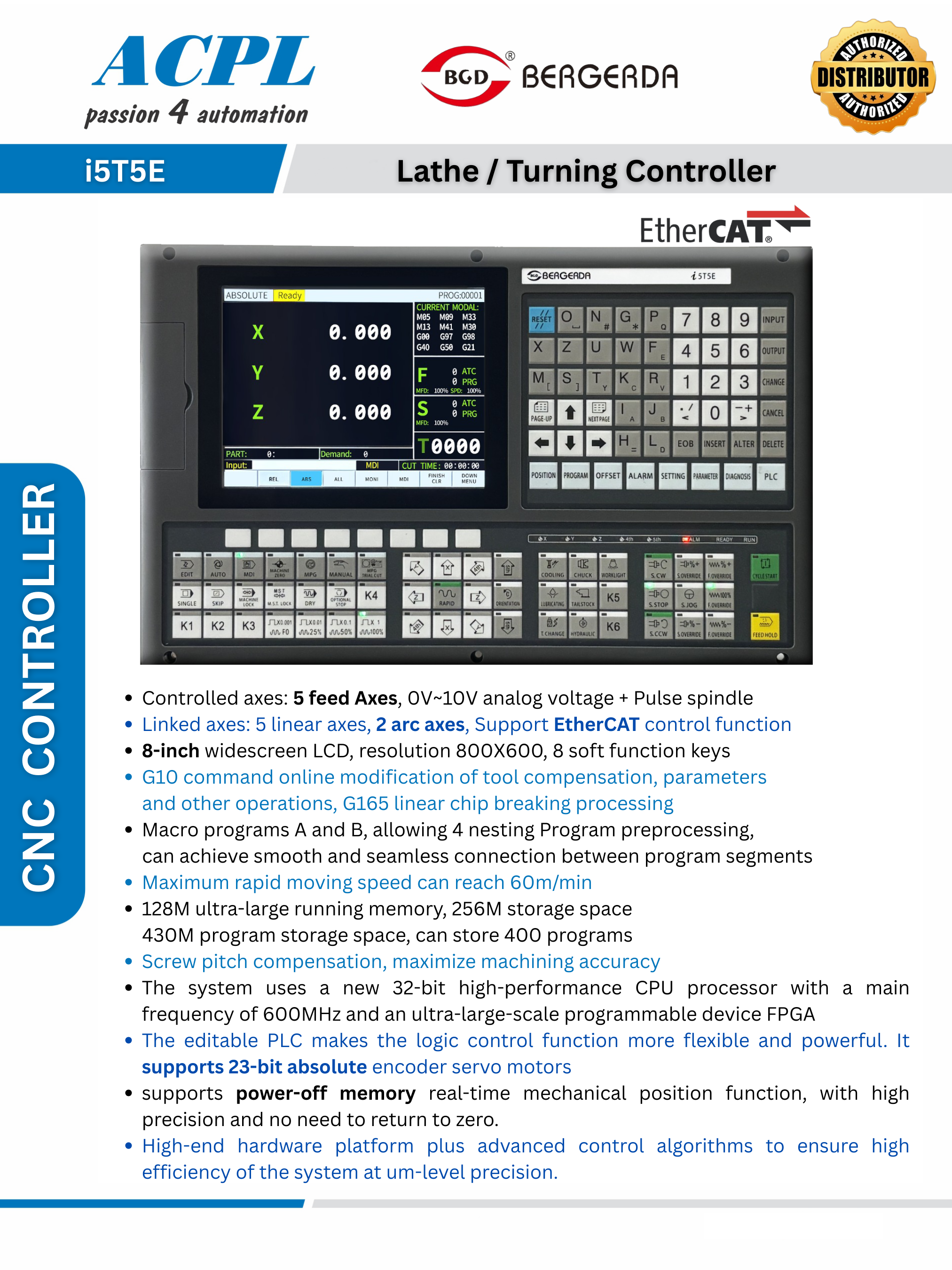

- Controlled axes: 5 feed Axes, 0V~10V analog voltage + Pulse spindle
- Linked axes: 5 linear axes, 2 arc axes, Support EtherCAT control function

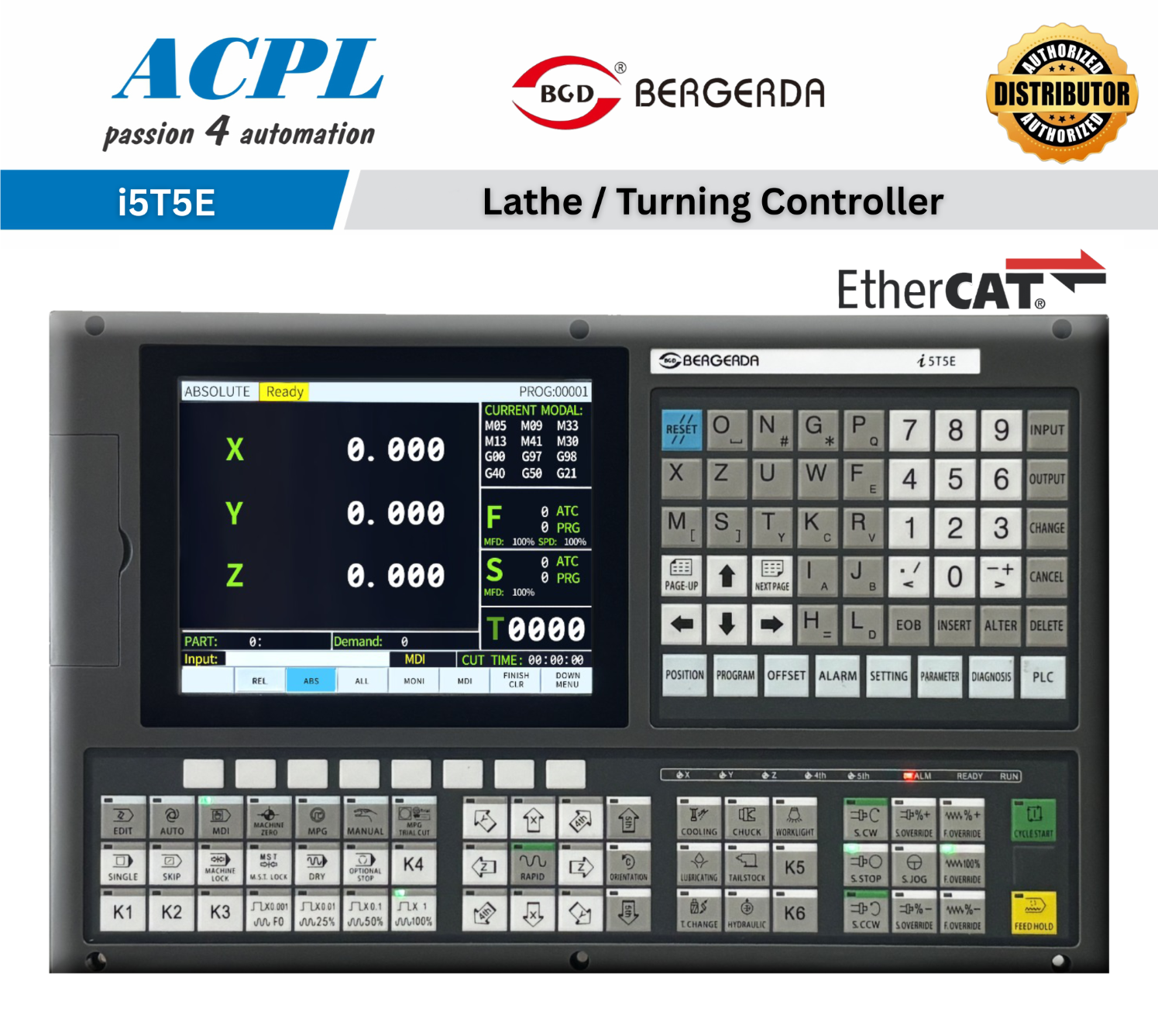

- 8-inch widescreen LCD, resolution 800X600, 8 soft function keys
- G10 command online modification of tool compensation, parameters
and other operations, G165 linear chip breaking processing
- Macro programs A and B, allowing 4 nesting Program preprocessing,
can achieve smooth and seamless connection between program segments
- Maximum rapid moving speed can reach 60m/min
- 128M ultra-large running memory, 256M storage space
430M program storage space, can store 400 programs
- Screw pitch compensation, maximize machining accuracy
- The system uses a new 32-bit high-performance CPU processor with a main frequency of 600MHz and an ultra-large-scale programmable device FPGA
- The editable PLC makes the logic control function more flexible and powerful. It supports 23-bit absolute encoder servo motors
- supports power-off memory real-time mechanical position function, with high precision and no need to return to zero.
- High-end hardware platform plus advanced control algorithms to ensure high efficiency of the system at um-level precision.
