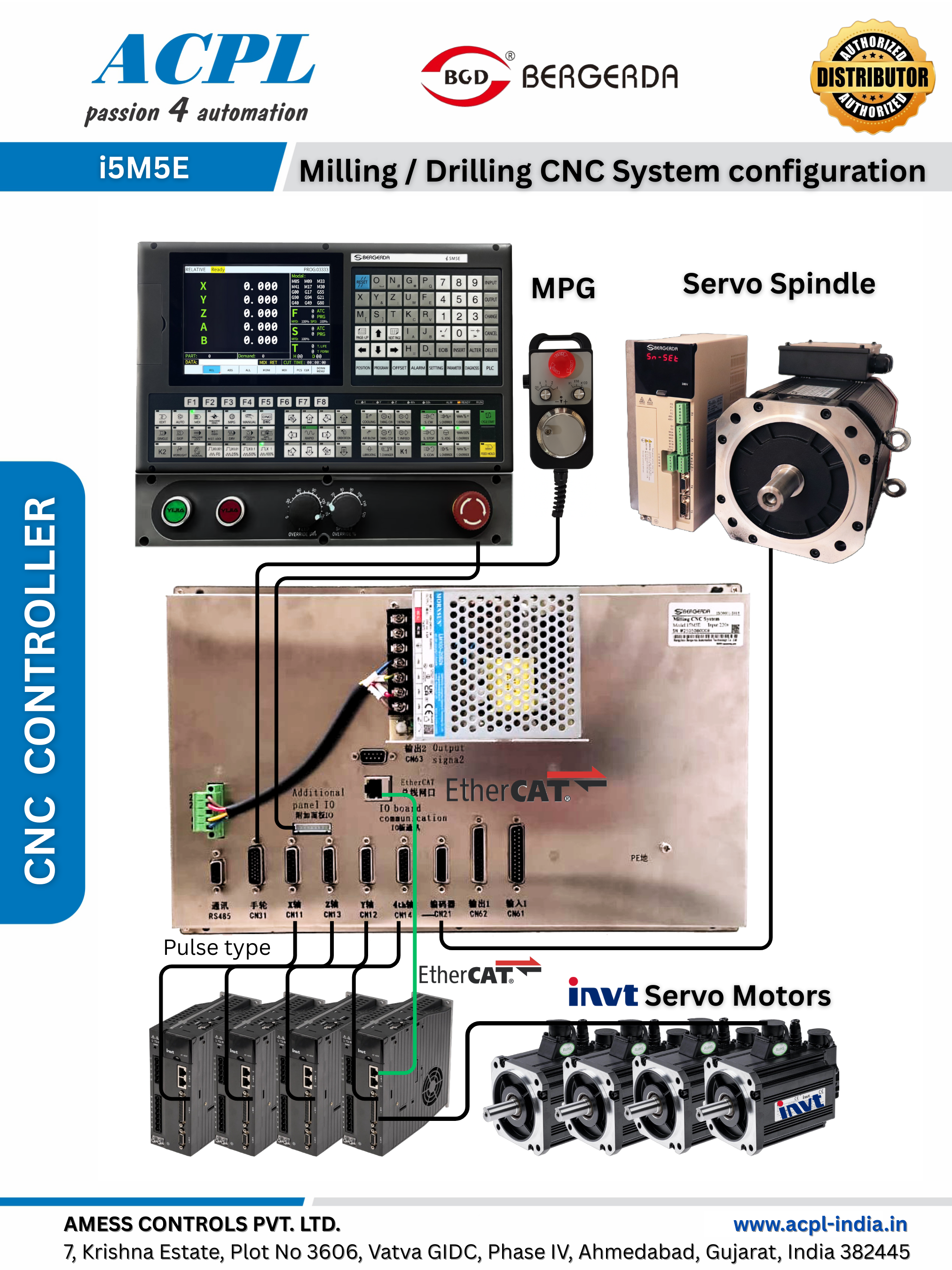

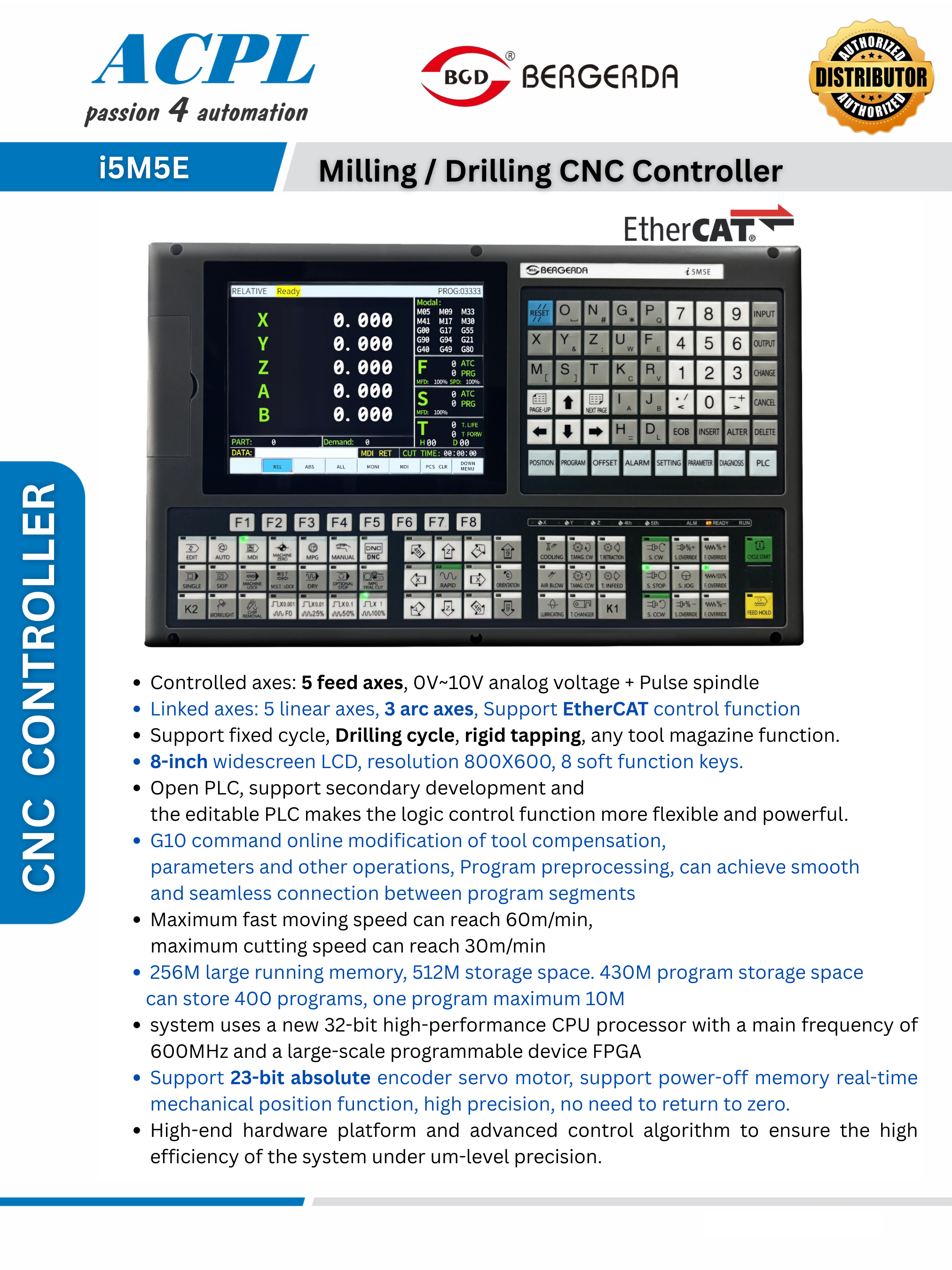

- Controlled axes: 5 feed axes, 0V~10V analog voltage + Pulse spindle
- Linked axes: 5 linear axes, 3 arc axes, Support EtherCAT control function
- Support fixed cycle, Drilling cycle, rigid tapping, any tool magazine function.

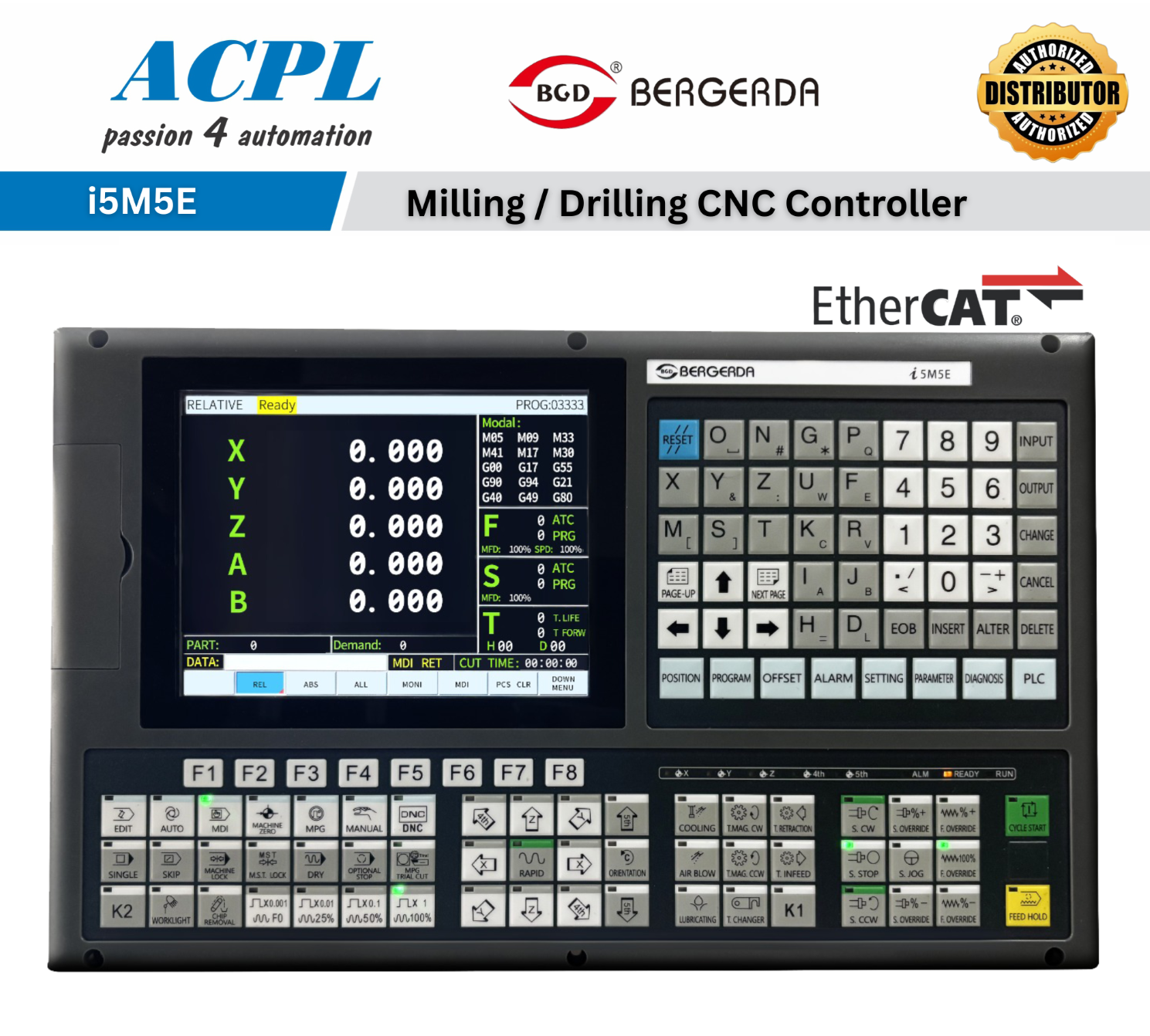

- 8-inch widescreen LCD, resolution 800X600, 8 soft function keys.
- Open PLC, support secondary development and
the editable PLC makes the logic control function more flexible and powerful.
- G10 command online modification of tool compensation,
parameters and other operations, Program preprocessing, can achieve smooth
and seamless connection between program segments
- Maximum fast moving speed can reach 60m/min,
maximum cutting speed can reach 30m/min
- 256M large running memory, 512M storage space. 430M program storage space
can store 400 programs, one program maximum 10M
- system uses a new 32-bit high-performance CPU processor with a main frequency of 600MHz and a large-scale programmable device FPGA
- Support 23-bit absolute encoder servo motor, support power-off memory real-time mechanical position function, high precision, no need to return to zero.
- High-end hardware platform and advanced control algorithm to ensure the high efficiency of the system under um-level precision.
