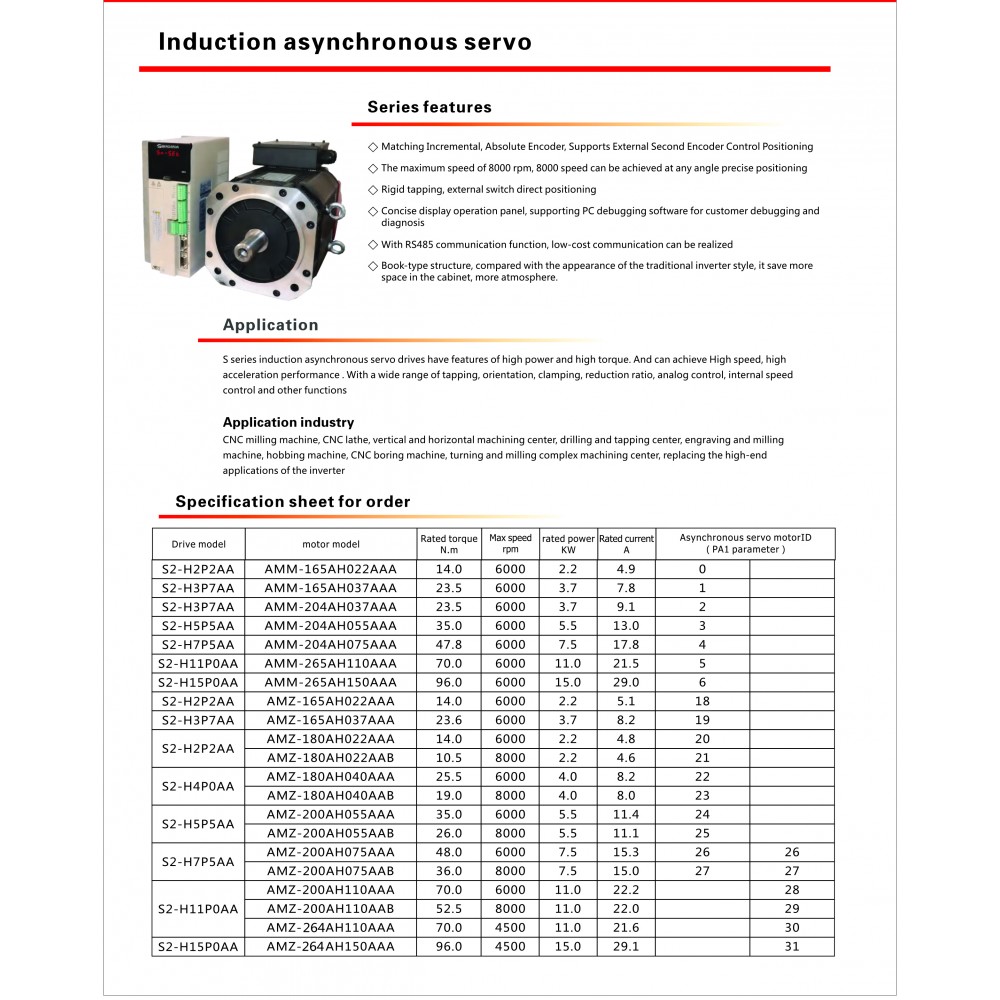

Technical Specification

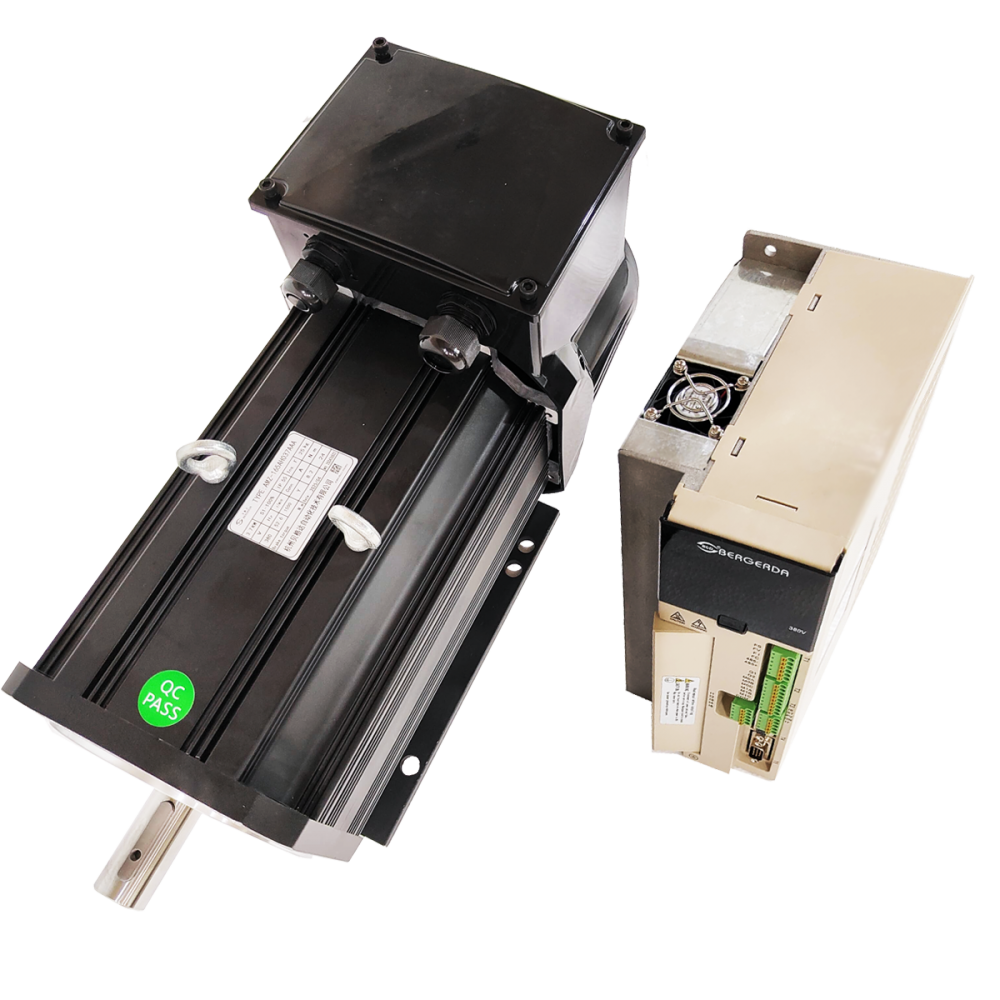

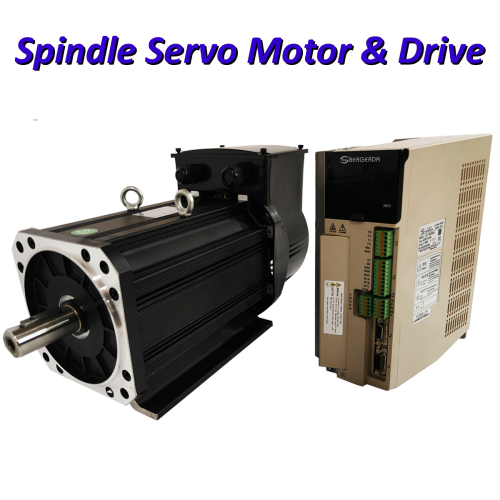

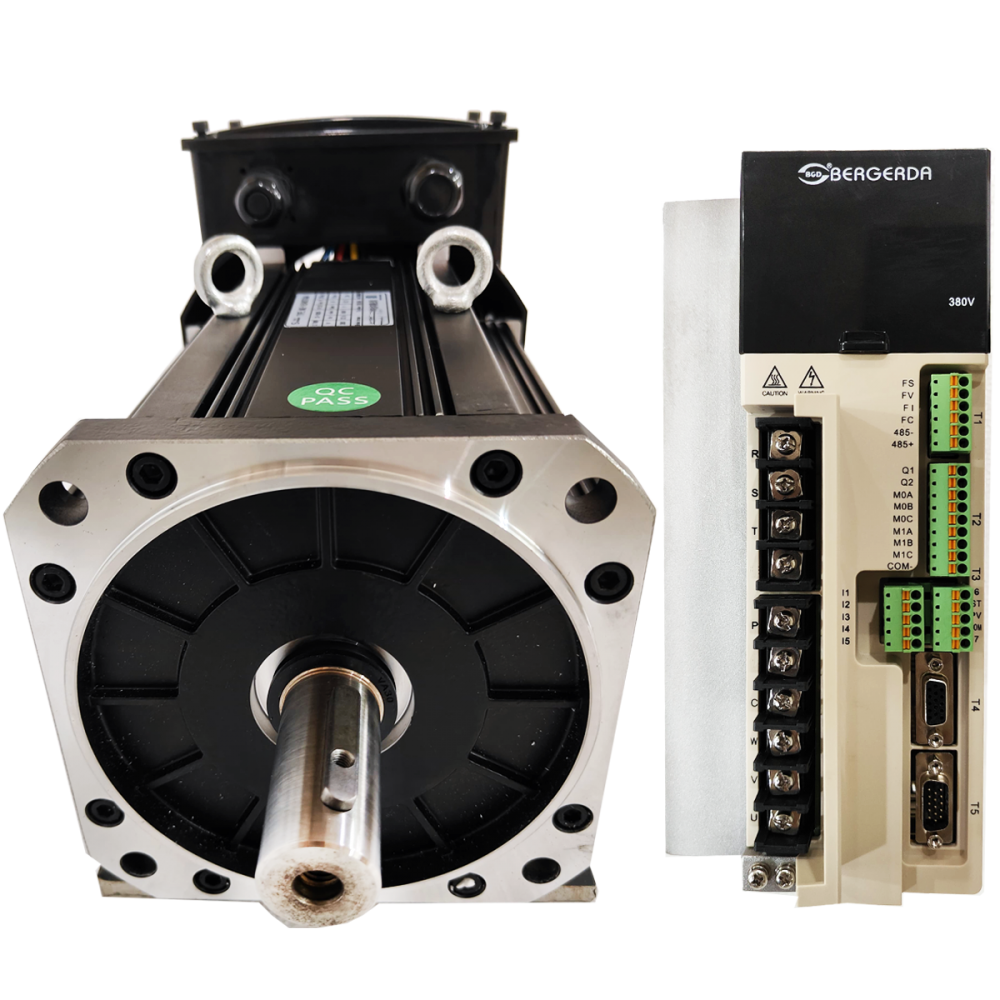

Product: Bergerda Spindle Servo Motor and Drive
Power Range: 0.75 kW to 15 kW
Rated Voltage: 380V (confirm as per model)
Rated Speed: 1500 to 6000 rpm (based on motor model)
Frequency: 200-400 Hz
Cooling Method: Shaft fan / External fan cooled
Encoder Type: Optional (Incremental / Absolute / Resolver)
Protection Class: IP54 / IP55 (confirm per model)
3.7 kW Spindle Motor AMZ-165AH037AAA
Servo DriveS2-H4P0AA
Key Features
? High-speed operation with low noise and stable torque
? Compact and lightweight design for easy machine integration
? Precision balanced rotor for minimal vibration
? Reliable insulation and bearing design ensuring long life
? Compatible with Bergerda spindle drives and controllers
? Available with air-cooled (based on series)
? Wide application in CNC machining centers, engraving machines, wood routers, and metal cutting systems
? Global service support with offices in India, Brazil, Ecuador, Mexico, Spain, and Poland
