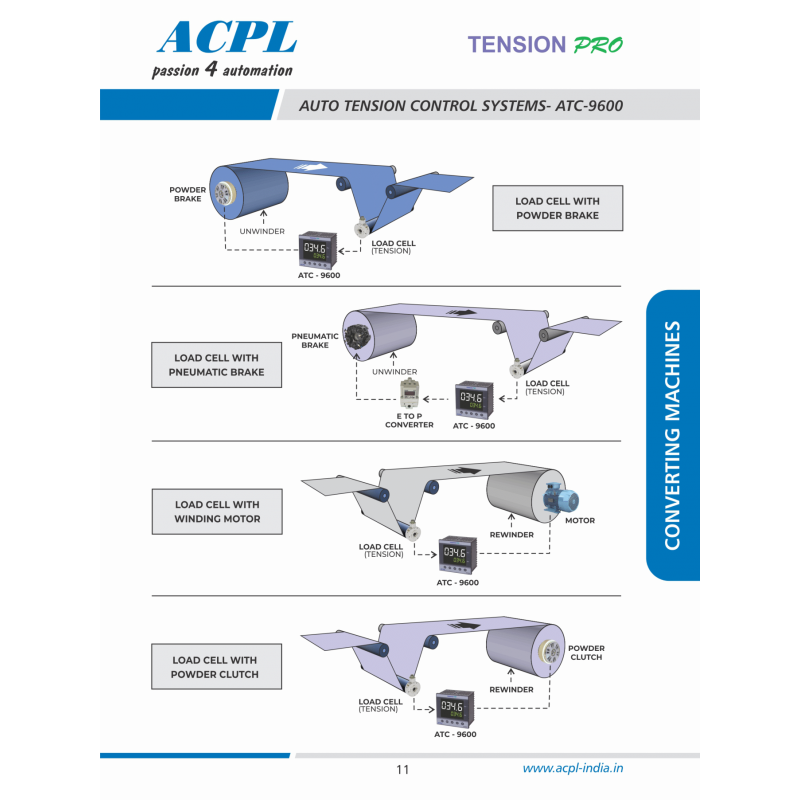

Tension Controller (ATC-9600)
- Flexible Input Options: Supports a wide range of input signal types for maximum compatibility, including 0-20 mA, 4-20 mA, 0-5V, and 0-10V, allowing seamless integration into various systems.
- Dual Output Options: Equipped with two versatile outputs, selectable between 0-5V, 0-10V, 0-20 mA, and 4-20 mA, ensuring precise tension control and easy interfacing with connected equipment.
- Autotuning PID Algorithm: Features an advanced autotuning PID algorithm that continuously adjusts and optimizes control parameters for superior performance, ensuring accurate tension regulation in dynamic applications.
- RS-485 Communication: Includes RS-485 communication protocol for robust, long-distance data transmission and easy integration into industrial control networks, enabling remote monitoring and control.
- Built-in Load Cell Amplifier: Incorporates an integrated load cell amplifier for direct measurement and processing of tension data, minimizing the need for external devices and ensuring reliable, real-time performance.
- This Tension Controller is designed for high-performance applications where precision and reliability are paramount, offering a comprehensive solution for tension monitoring and control in a variety of industrial applications.
- Power Supply: 220V AC
- Dimensions: 96mm(W) x 96mm(H) x 57mm(D)
- Panel Cutout: 92mm(W) x 92mm(H)
